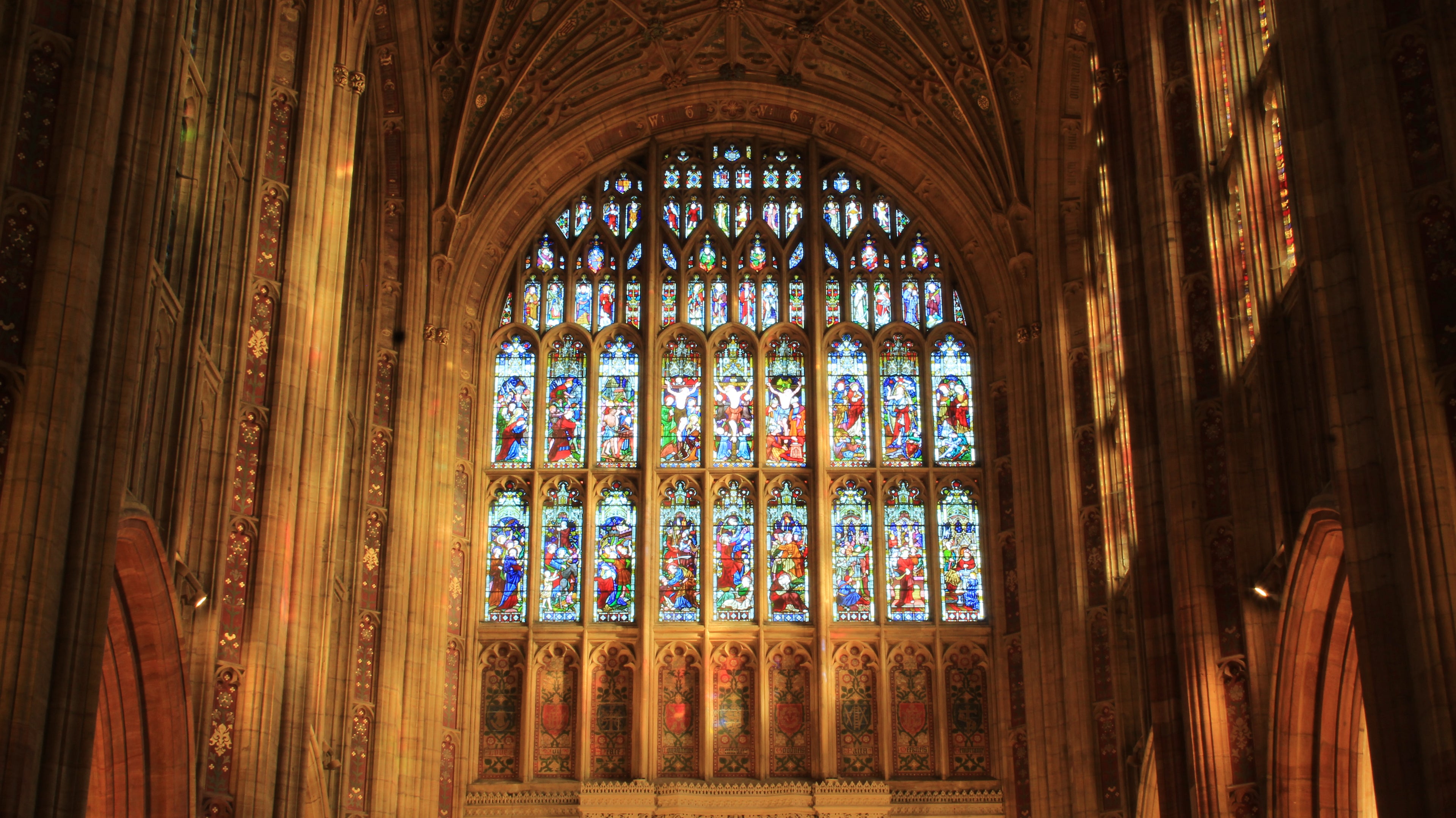

The history of Sherborne Abbey stretches back more than thirteen centuries. Founded by St Aldhelm in AD 705, it originally served as the cathedral for the western part of the Anglo-Saxon kingdom of Wessex. A Benedictine community was established there in 998, and the church remained both an abbey and an important centre of worship until the Dissolution of the Monasteries in 1539, when it was purchased by the townspeople and became Sherborne’s parish church. Much of the building’s present character resulted from extensive rebuilding during the 15th century, following a destructive fire in 1437. This work produced the Abbey’s celebrated fan vaulting, among the earliest and most ambitious examples of its kind in England. Today, the building preserves a remarkable combination of Saxon foundations, Norman architecture and Perpendicular Gothic craftsmanship, and is still affectionately known as the “Cathedral of Dorset.”

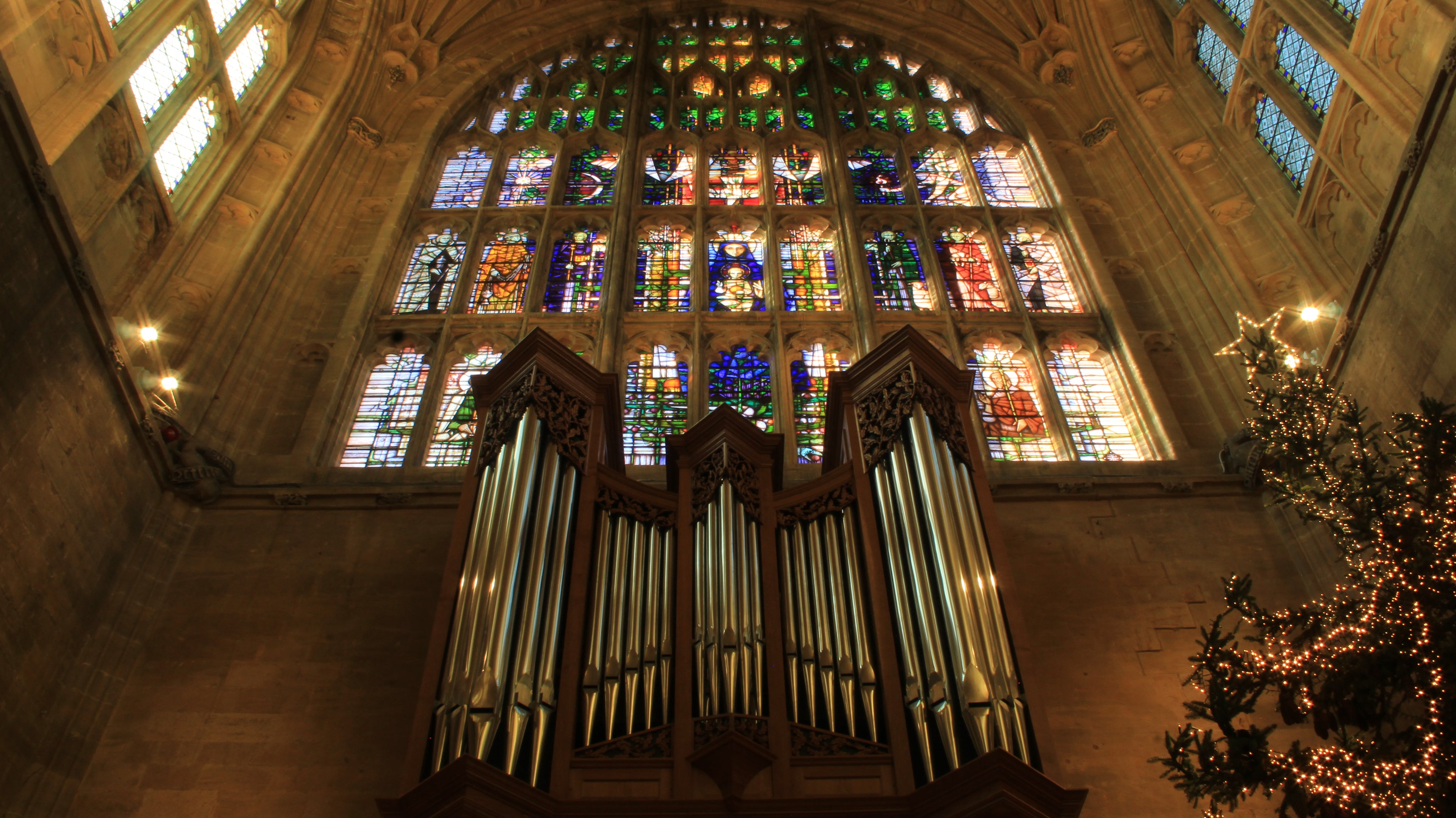

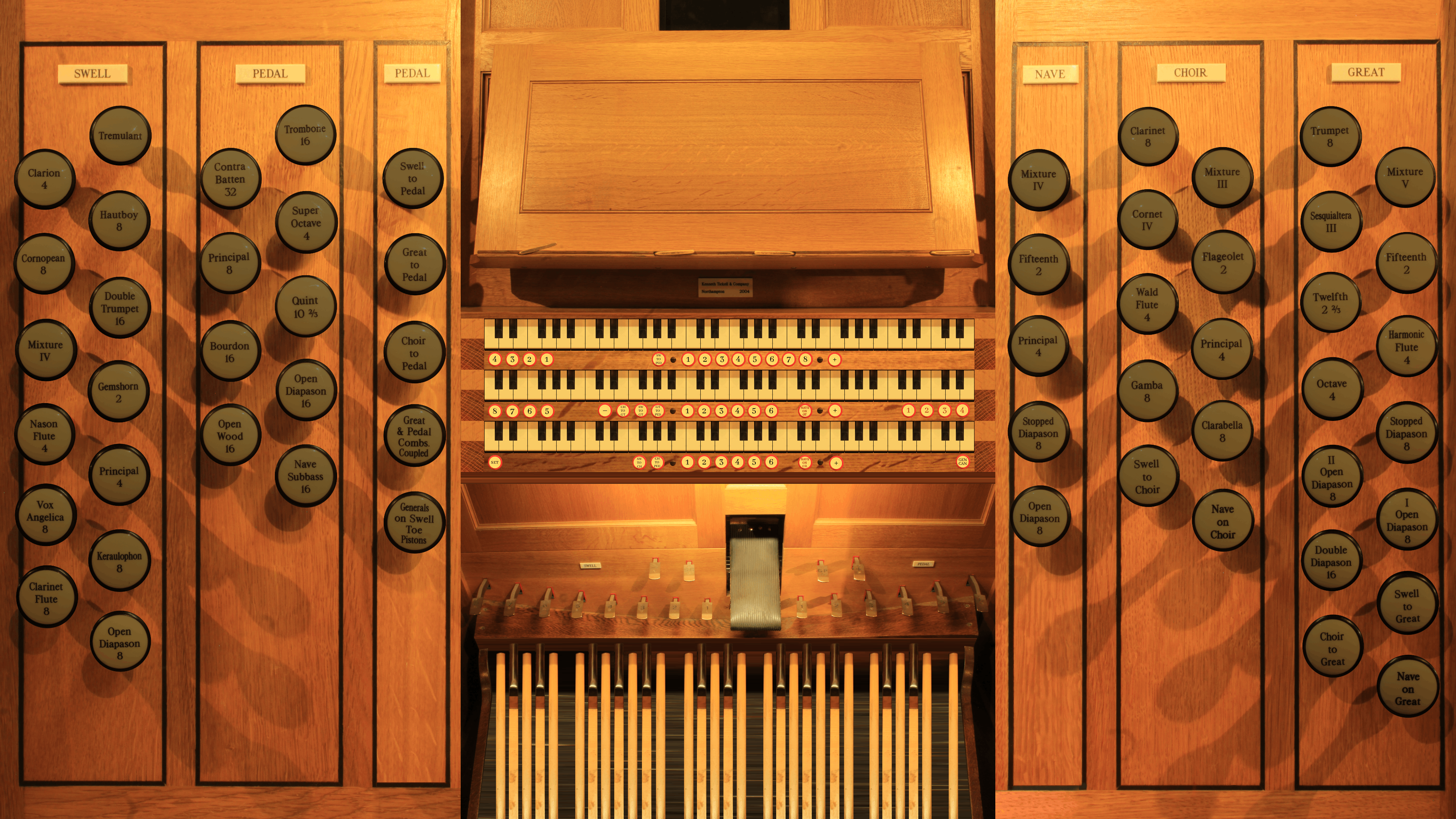

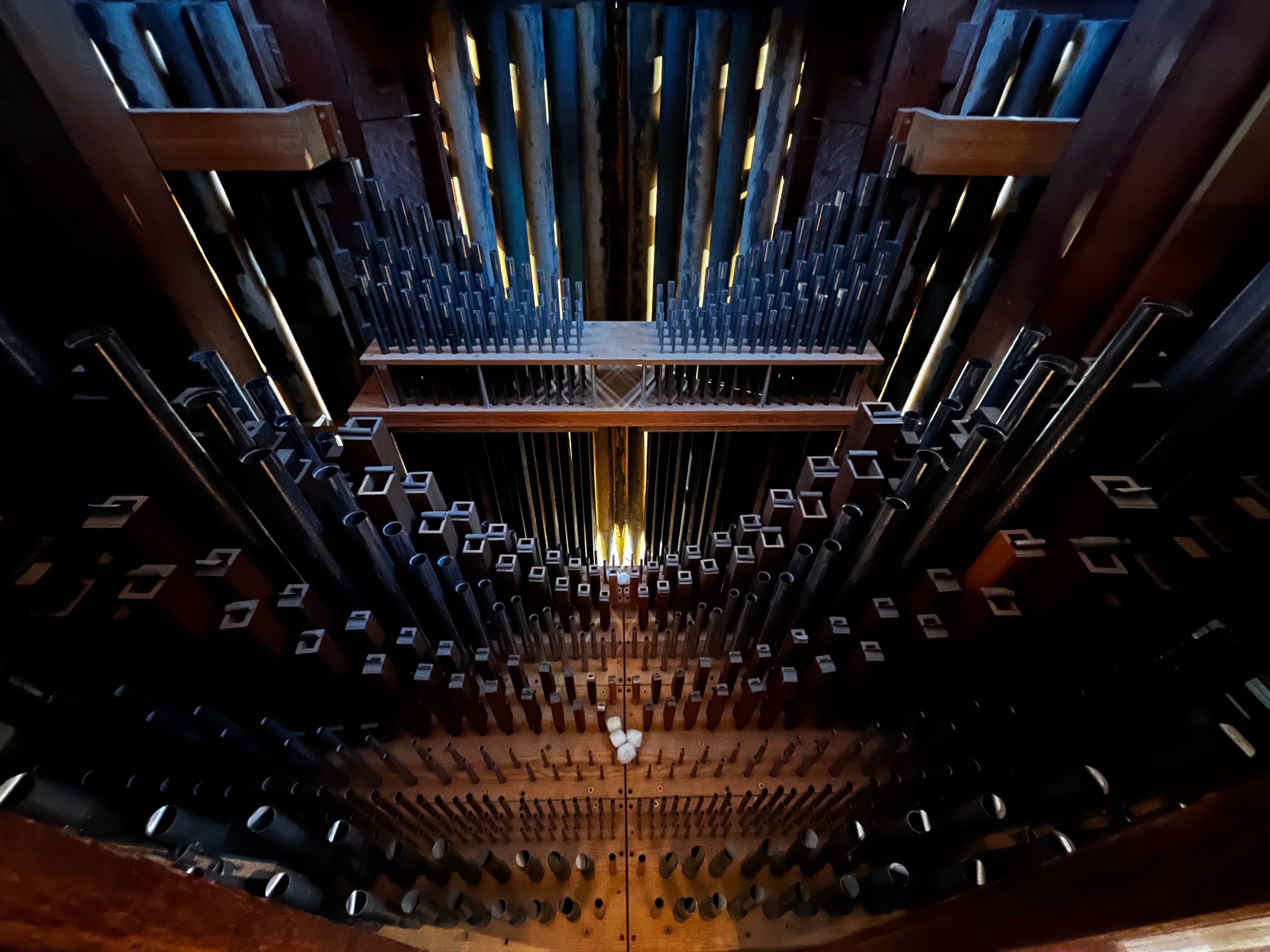

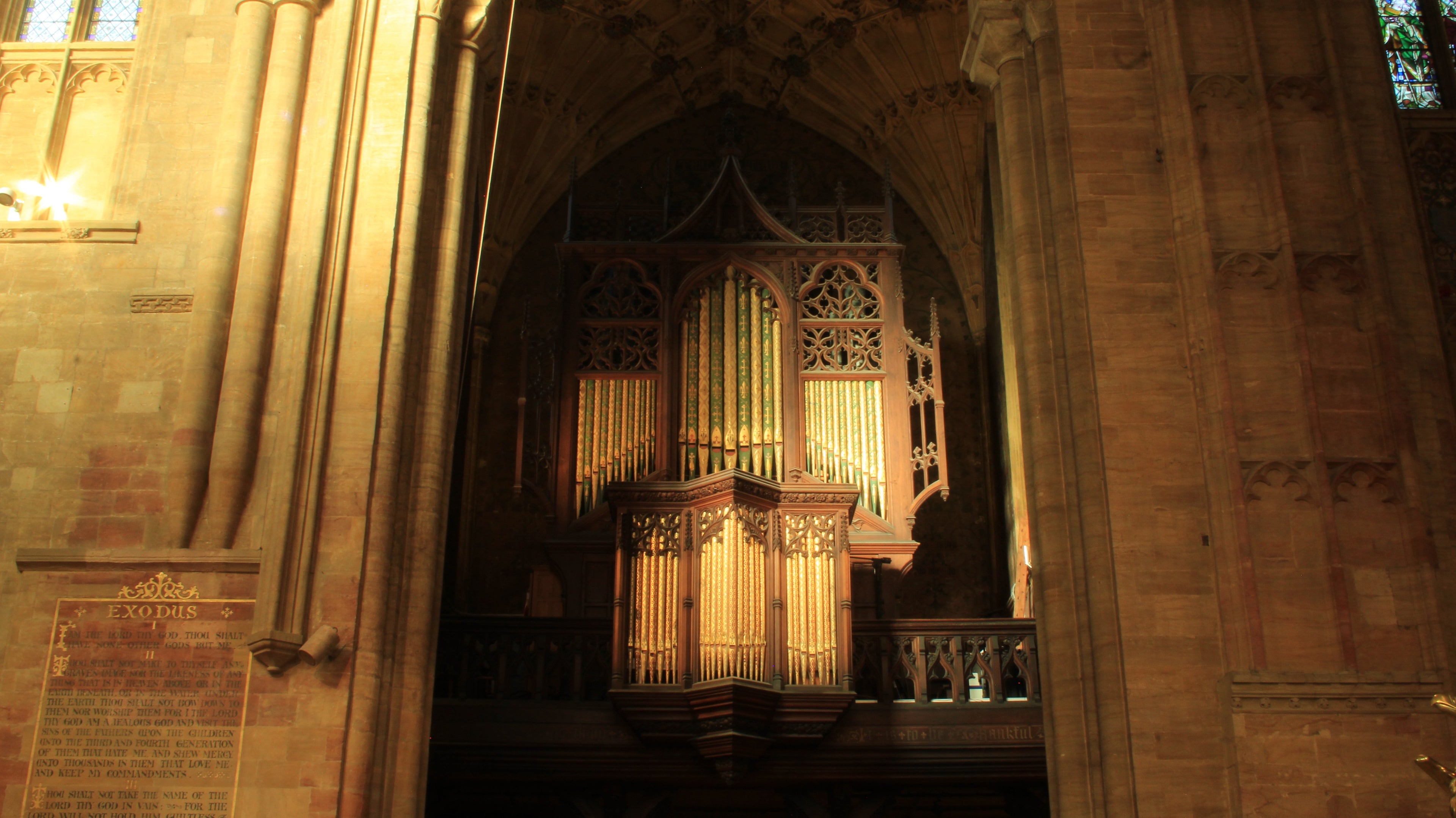

The present organ has its origins in the substantial instrument built by Gray & Davison in 1856 and installed above the north transept. It has since undergone several major transformations, including a comprehensive rebuild by J. W. Walker & Sons in 1955, alterations by John Coulson in 1972 and a further reconstruction by Bishop & Son in 1987, during which mechanical key action was reinstated and the console returned to the organ loft. A major rebuild and tonal improvement was undertaken by Kenneth Tickell & Co. in 2004–05, introducing new pipework to several divisions and adding a separate Nave Organ beneath the west window. This additional division allows the instrument to speak more effectively throughout the considerable length of the building, while the principal organ continues to occupy its historic position in the north transept. Despite its many alterations, the instrument retains a significant quantity of pipework from the original Gray & Davison organ.

The organ today is a distinctive synthesis of Victorian and modern English organ building, combining the breadth and richness of its historic Gray & Davison pipework with the clarity, flexibility and improved projection introduced by Kenneth Tickell. Its wide tonal range makes it particularly effective in accompanying the Abbey’s liturgical and choral tradition, while its contrasting divisions, powerful choruses and more intimate solo colours provide an equally compelling instrument for recital use.

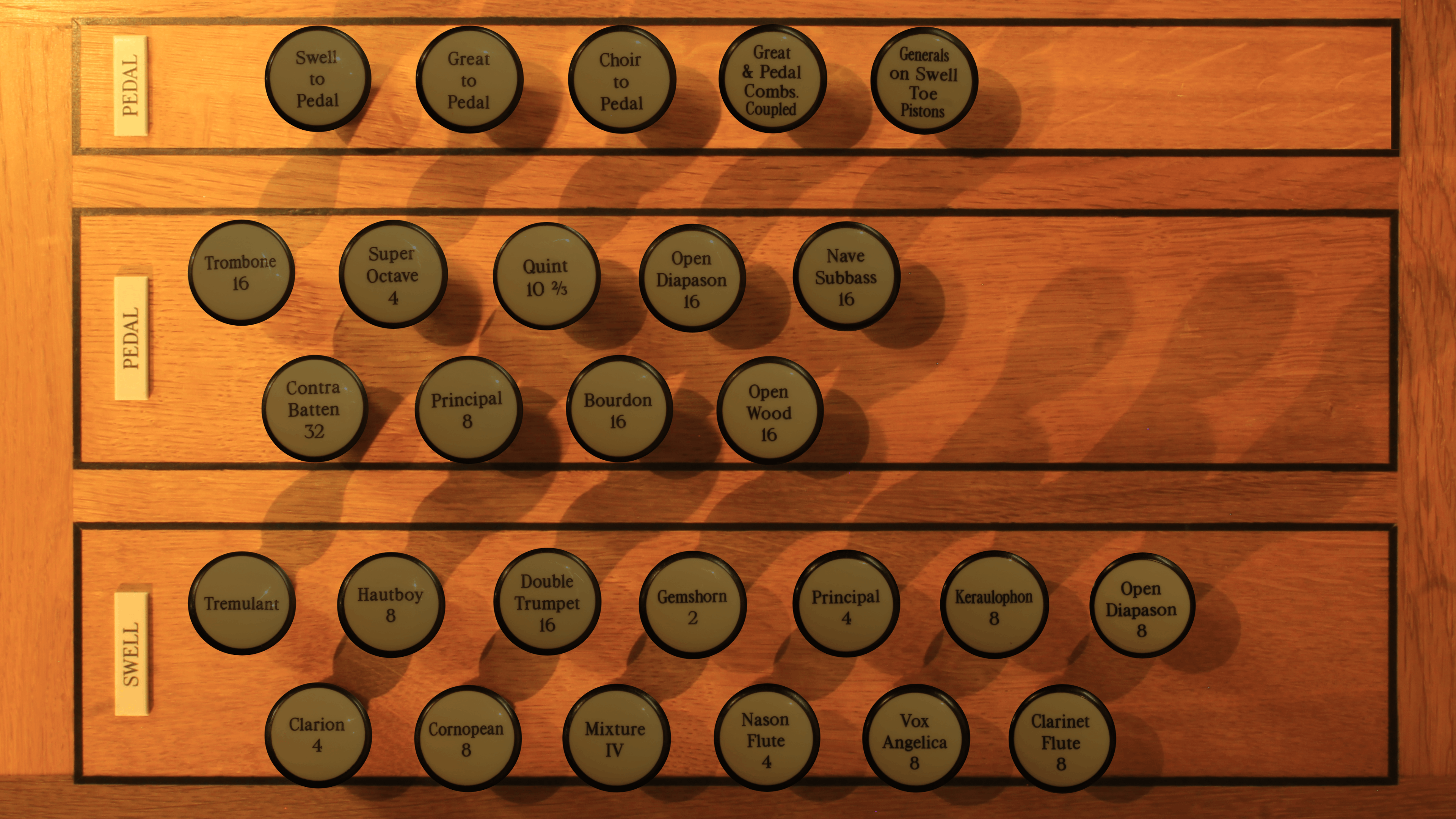

  • Pedal

    Open Wood 16'
    Open Diapason 16'
    Bourdon 16'
    Nave Subbass 16'
    Quint 10 2/3'
    Principal 8
    Super Octave 4'
    Contra Batten 32'
    Trombone 16'

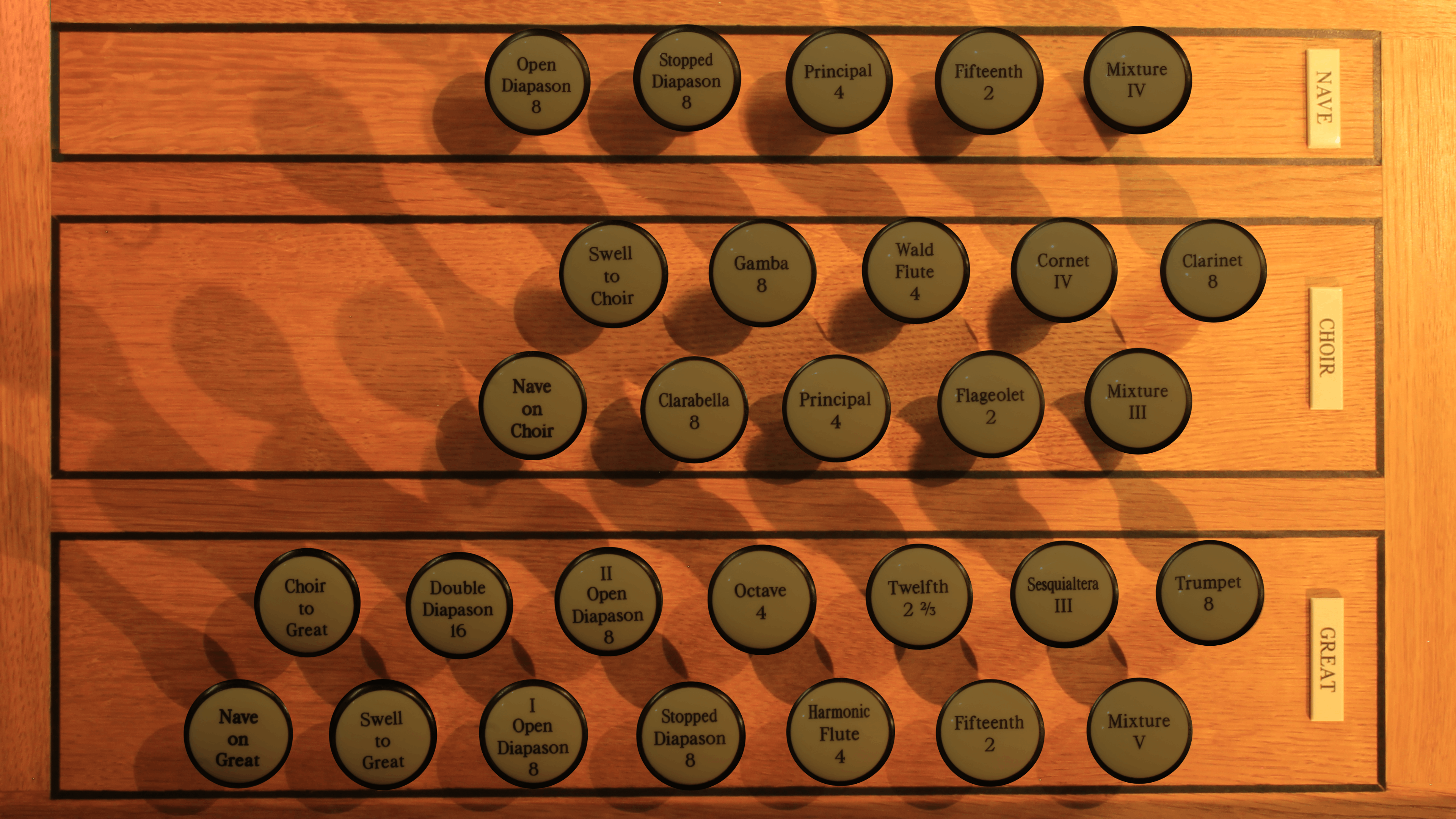

  • Choir

    Clarabella 8'
    Gamba 8'
    Principal 4'
    Flute 4'
    Flageolet 2'
    Cornet IV
    Mixture II-III
    Clarinet 8'

  • Great

    Double Diapason 16'
    Open Diapason I 8'
    Open Diapason II 8'
    Stopped Diapason 8'
    Octave 4'
    Harmonic Flute 4'
    Twelfth 2 2/3'
    Fifteenth 2'
    Sesquialtera III
    Mixture V
    Trumpet 8'

  • Swell

    Open Diapason 8'
    Clarinet Flute 8'
    Keraulophon 8'
    Vox Angelica 8'
    Principal 4'
    Nason Flute 4'
    Gemshorn 2'
    Mixture IV
    Double Trumpet 16'
    Cornopean 8'
    Hautboy 8'
    Clarion 4'
    Tremulant

  • Nave

    Open Diapason 8
    Stopped Diapason 8
    Principal 4
    Fifteenth 2
    Mixture IV

  • Couplers

    Swell to Pedal

    Great to Pedal

    Choir to Pedal

    Swell to Choir

    Nave on Choir

    Swell to Great

    Choir to Great

    Nave on Great

  • Combinations

    Great & Pedal Combs. Coupled

    Generals on Swell Toe Pistons

  • Pedal

    Bourdon 16'

  • Choir

    Gamba 8'

    Flute 4'

    Mixture II-III

  • Great

    Open Diapason I 8'

    Stopped Diapason 8'

    Octave 4'

    Fifteenth 2'

  • Swell

    Open Diapason 8

    Vox Angelica 8'

    Principal 4'

    Cornopean 8'

  • Nave

    Open Diapason 8

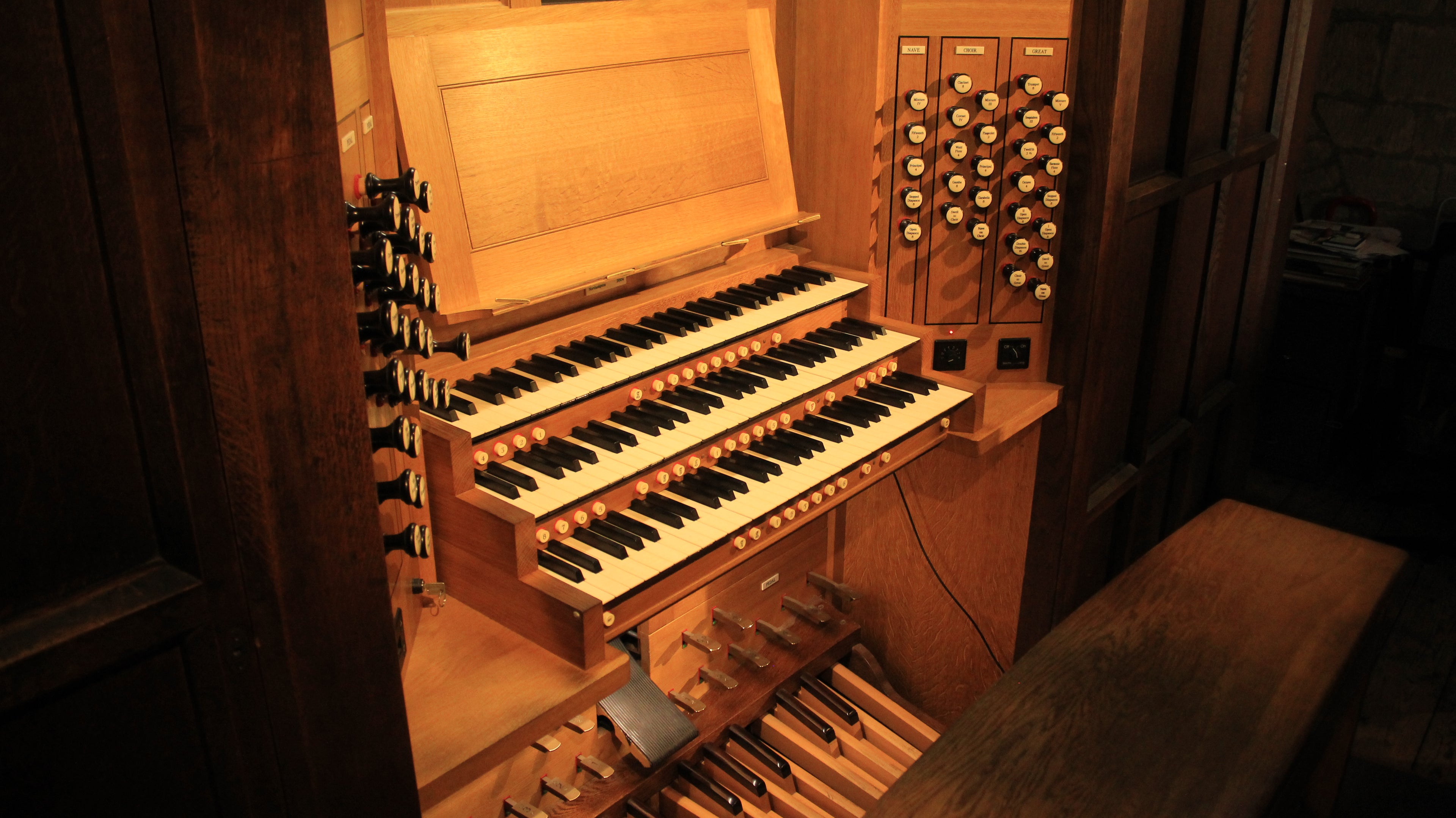

Images

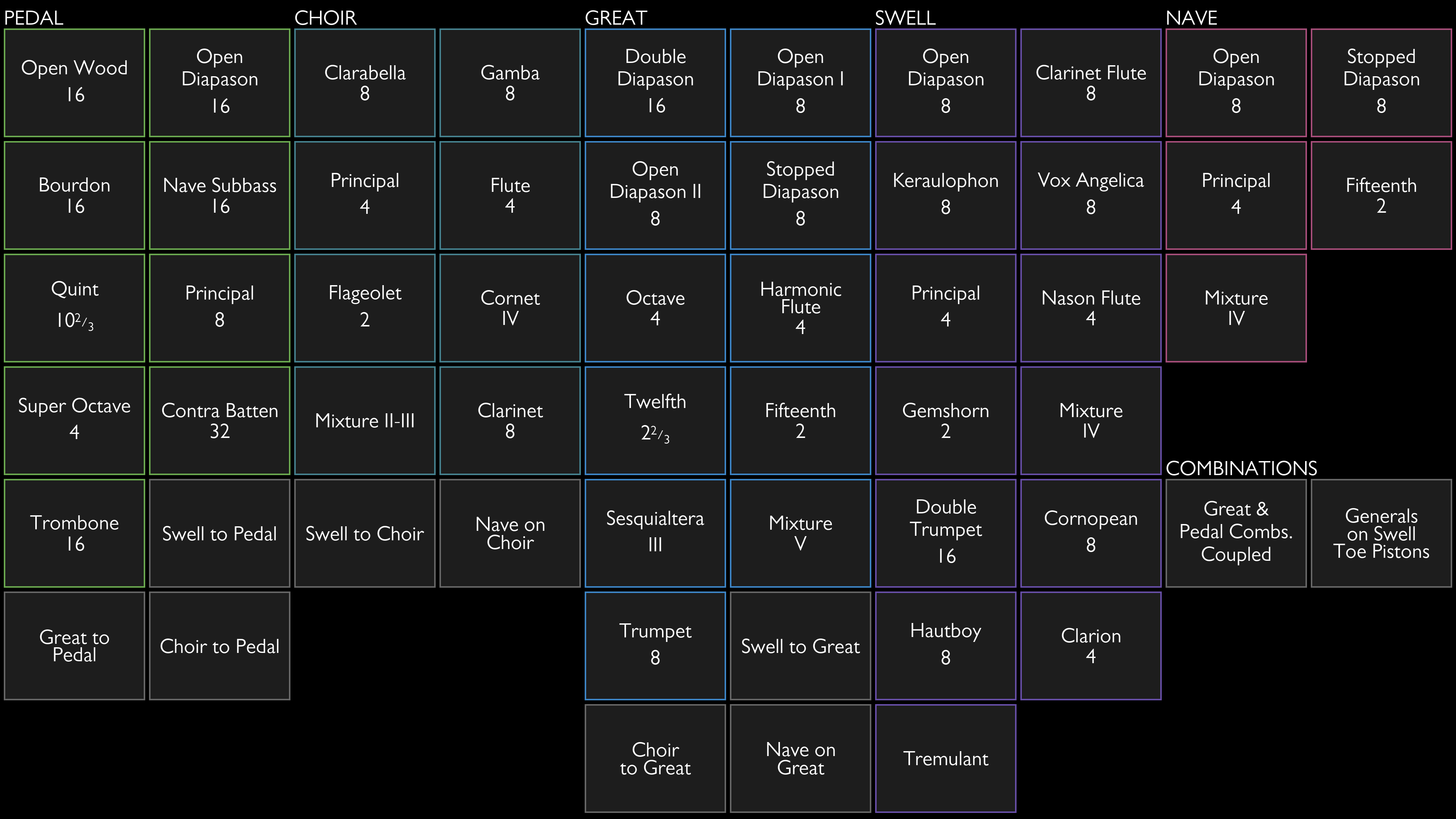

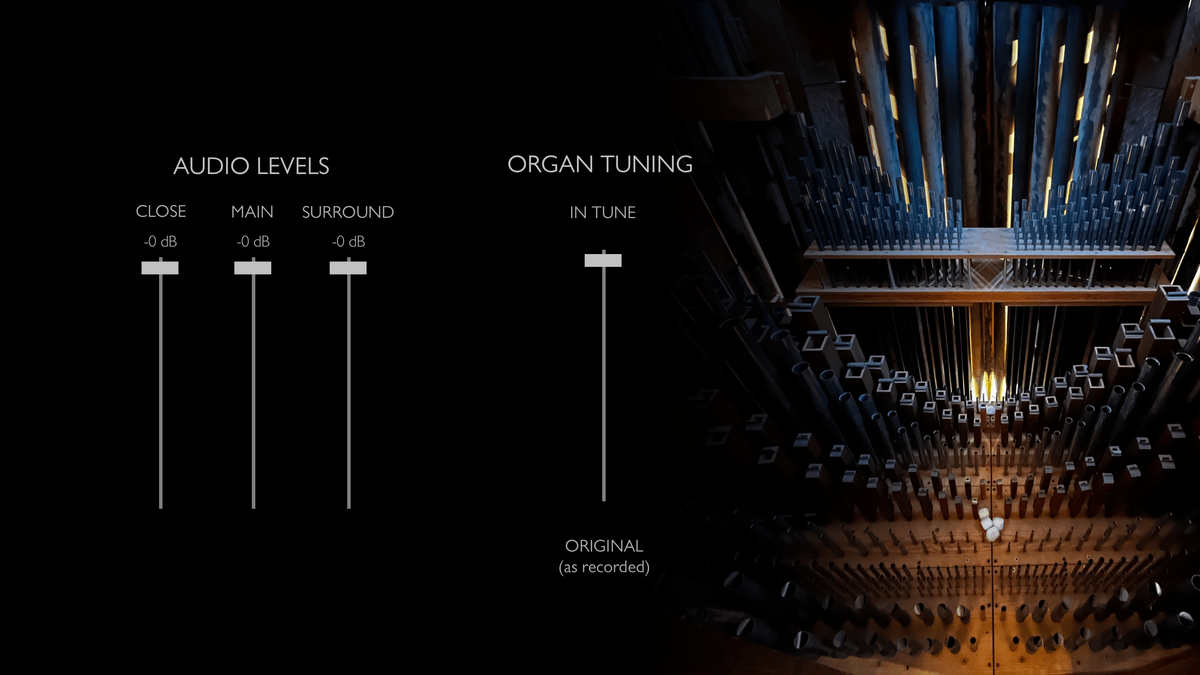

Screenshots

Technical Details

Sample Rate - 48 kHz

Bit Depth - 24 bit

Channels - 6 (x3 Stereo channels - Close, Main & Surround) - Unfortunately, no access to the case was possible at the time of recording so there is no direct perspectives (e.g. St. Edmundsbury Cathedral)

Reverb Tail - c. 4s

Tremulant Model - Sampled Chromatically

Compatible software - Hauptwerk Version 4.2 or higher

Impulse Responses also included - Hauptwerk Version 5 or higher

Release Date: September 2026
